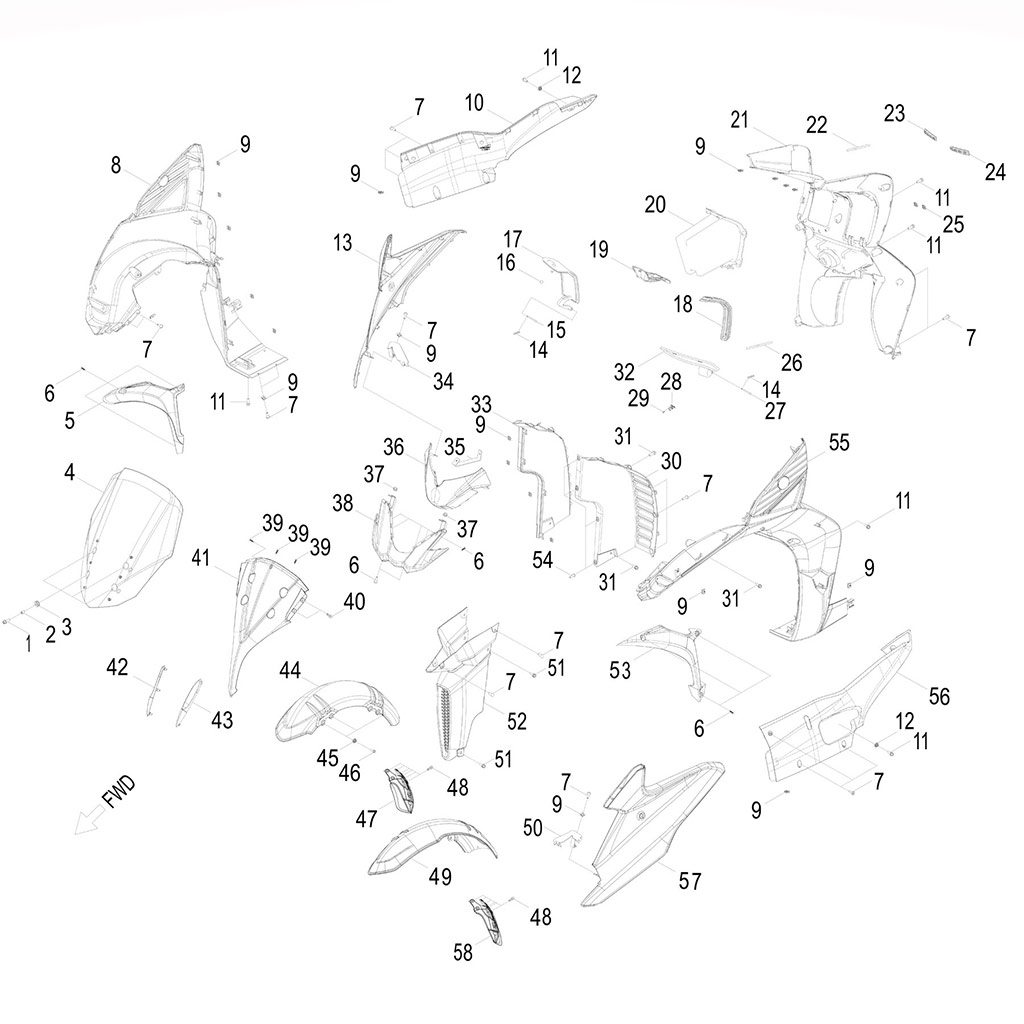

| Item | Description | P/N | Q.ty(1) | Note |
|---|---|---|---|---|
| 1 | Bolt | QS00706022800K | 4 | M6*P1.0*22L W/Washer |
| 2 | Tube, Spacer | QS810215000 | 4 | |
| 3 | Grommet | QS129204000 | 4 | |
| 4 | Screen | QS311S38112 | 1 | |
| 5 | Front Shield Lateral (RH) SNOW WHITE | QS152S38243 | 1 | |
| 5 | Front Shield Lateral (RH) BLUE | QS152S38597 | 1 | |
| 5 | Front Shield Lateral (RH) SILVER | QS152S38842 | 1 | |
| 5 | Front Shield Lateral (RH) RAW BLACK | QS152S38131 | 1 | |
| 6 | Screw | QS903105014800K | 26 | |
| 7 | Bolt | QS00905016800K | 30 | M5*P0.8*16L W/Washer |
| 8 | Front Shield Upper Element(RH) | QS127S38000 | 1 | |
| 9 | Nut-U | QS12120300B | 48 | |
| 10 | Panel, Bottom, RH SNOW WHITE | QS501S31243 | 1 | |
| 10 | Panel, Bottom, RH SILVER | QS501S31842 | 1 | |
| 10 | Panel, Bottom, RH BLUE | QS501S31597 | 1 | |
| 10 | Panel, Bottom, RH RAW BLACK | QS501S31131 | 1 | |
| 11 | Bolt | QS00706016800K | 9 | |
| 12 | Washer | QS150071705000K | 2 | |
| 13 | Front Cover, RH RAW BLACK | QS002S38131 | 1 | |
| 13 | Front Cover, RH SNOW WHITE | QS002S38243 | 1 | |
| 13 | Front Cover, RH BLUE | QS002S38597 | 1 | |
| 13 | Front Cover, RH SILVER | QS002S38842 | 1 | |
| 14 | Cotter Pin | QS20312200 | 2 | |
| 15 | Shaft, Filler Cover | QS30206059 | 1 | |
| 16 | Plug, Rubbe, Hood | QS424S38000 | 1 | |
| 17 | Cover, Glove Box | QS134S38000 | 1 | |
| 18 | Rubber , Parking Brake Lever | QS708S38001 | 1 | |
| 19 | Cover, Main Switch RAW BLACK | QS109S38862 | 1 | (Item color: titanium gray) |
| 19 | Cover, Main Switch SILVER | QS109S38862 | 1 | (Item color: titanium gray) |
| 19 | Cover, Main Switch SNOW WHITE | QS109S38862 | 1 | |
| 19 | Cover, Main Switch BLUE | QS109S38801 | 1 | (Item color: silver) |
| 20 | Glove Box | QS271S38000 | 1 | |
| 21 | Inner Box | QS131S38001 | 1 | |
| 22 | Rubber Seal, Glove Box | QS43205000515 | 1 | |
| 23 | Cover, Heating(R) | QS147S38000 | 1 | |
| 24 | Cover, Heating(L) | QS146S38000 | 1 | |
| 25 | U-Nut | QS3450400002T | 2 | M4*P0.6 |
| 26 | Rubber Seal, Glove Box | QS43205006750 | 1 | |
| 27 | Shaft, Filler Cover | QS30206045 | 1 | |
| 28 | Fastener, Small Storage Box | QS104S38000 | 2 | |
| 29 | Screw | QS907103008800K | 4 | |
| 30 | Radiator Cover, LH | QS118S38000 | 1 | |
| 31 | Bolt | QS00006016810K | 6 | M6*P1.0*16L |
| 32 | Cover, Small Storage Box SILVER | QS227S38862 | 1 | (Item color: titanium gray) |
| 32 | Cover, Small Storage Box RAW BLACK | QS227S38862 | 1 | (Item color: titanium gray) |
| 32 | Cover, Small Storage Box BLUE | QS227S38801 | 1 | (Item color: silver) |
| 32 | Cover, Small Storage Box SNOW WHITE | QS227S38862 | 1 | |
| 33 | Radiator Cover, RH | QS119S38000 | 1 | |
| 34 | Bracket, Front Cover, RH | QS294S38000 | 1 | |
| 35 | Brakect, Front Cover, Middle | QS292S38000 | 1 | |
| 36 | Shield Element, Front Upper RAW BLACK | QS291S38131 | 1 | |
| 36 | Shield Element, Front Upper SNOW WHITE | QS291S38243 | 1 | |
| 36 | Shield Element, Front Upper BLUE | QS291S38597 | 1 | |
| 36 | Shield Element, Front Upper SILVER | QS291S38842 | 1 | |
| 37 | Nut | QS0500500000C | 2 | M5*P0.8 |
| 38 | Shield Element, Front Lower | QS153S38000 | 1 | |
| 39 | Screw | QS903305010800K | 3 | |
| 40 | Rivet, Plastic | QS120153000 | 4 | |
| 41 | Cover, Headlight | QS321S38000 | 1 | |
| 42 | Veneer, RH | QS50350N070 | 1 | |
| 43 | Veneer, LH | QS60350N070 | 1 | |
| 44 | Fender, Front, RH | QS853S38001 | 1 | |
| 45 | Washer | QS150071707500K | 8 | φ6.5*φ17.5*t7.5 |
| 46 | Bolt | QS910030601680 | 8 | |
| 47 | Rubber Mudguard, Fender | QS61115206001 | 1 | |
| 48 | Rivet, Plastic | QS120204000 | 12 | |
| 49 | Fender, Front, LH | QS852S38001 | 1 | |
| 50 | Bracket, Front Cover, LH | QS293S38000 | 1 | |
| 51 | Bolt | QS00706012800K | 4 | M6*P1.0*12L |
| 52 | Cover, HTS | QS860S38000 | 1 | |
| 53 | Front Shield Lateral (LH) RAW BLACK | QS151S38131 | 1 | |
| 53 | Front Shield Lateral (LH) SNOW WHITE | QS151S38243 | 1 | |
| 53 | Front Shield Lateral (LH) BLUE | QS151S38597 | 1 | |
| 53 | Front Shield Lateral (LH) SILVER | QS151S38842 | 1 | |
| 54 | Bolt | QS10005016800K | 6 | M5*P0.8*16L |
| 55 | Front Shield Upper Element(LH) | QS126S38000 | 1 | |
| 56 | Panel, Bottom, LH RAW BLACK | QS601S31131 | 1 | |
| 56 | Panel, Bottom, LH SNOW WHITE | QS601S31243 | 1 | |
| 56 | Panel, Bottom, LH BLUE | QS601S31957 | 1 | |
| 56 | Panel, Bottom, LH SILVER | QS601S31842 | 1 | |
| 57 | Front Cover, LH RAW BLACK | QS001S38131 | 1 | |
| 57 | Front Cover, LH SNOW WHITE | QS001S38243 | 1 | |
| 57 | Front Cover, LH BLUE | QS001S38597 | 1 | |
| 57 | Front Cover, LH SILVER | QS001S38842 | 1 | |
| 58 | Rubber Mudguard, Fender | QS61115205001 | 1 |
Q.TY(1) = Mindestmenge erforderlich
|
|
