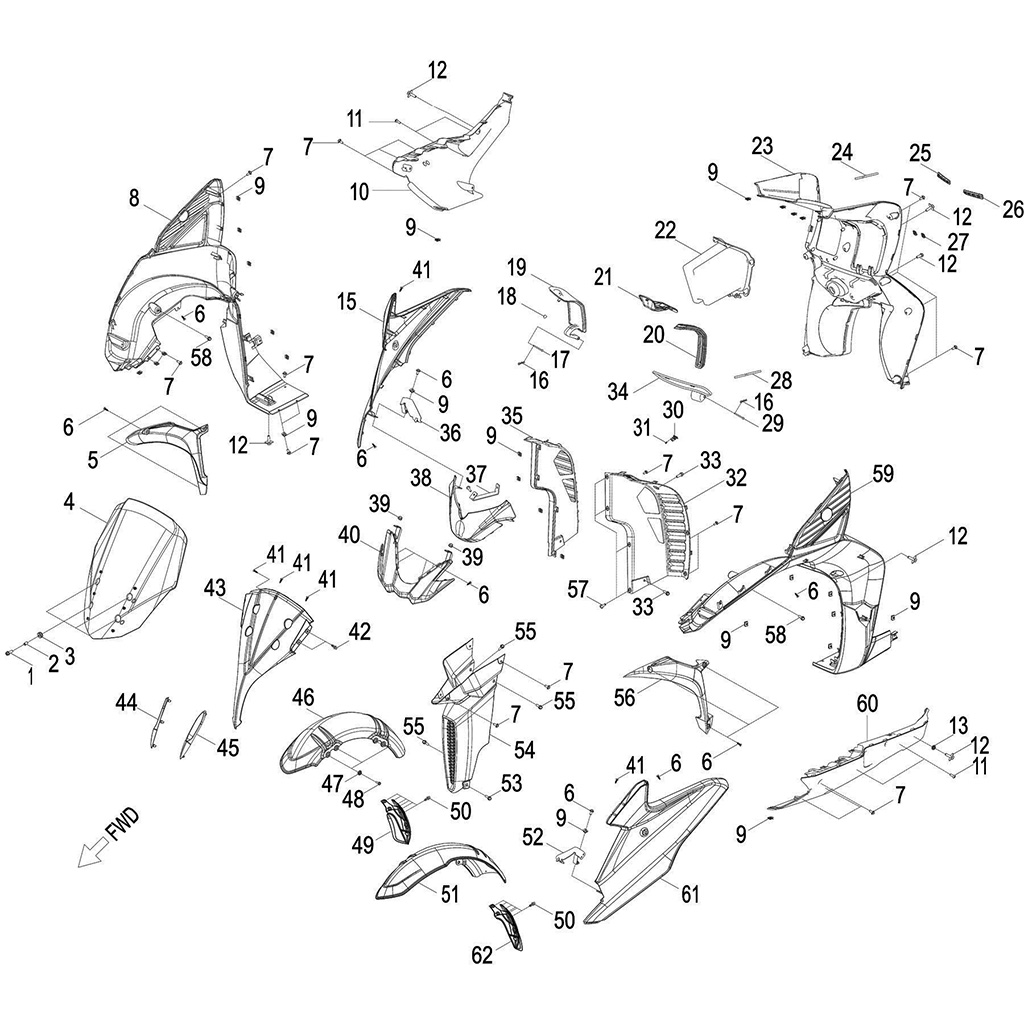

| Item | Description | P/N | Q.ty(1) | Note |
|---|---|---|---|---|
| 1 | Bolt | QS00706022800K | 4 | M6*P1.0*22L W/Washer |
| 2 | Tube, Spacer | QS810215000 | 4 | |
| 3 | Grommet | QS129204000 | 4 | |
| 4 | Screen | QS311S38112 | 1 | |
| 5 | Front Shield Lateral (RH) RAW BLACK | QS152S38131 | 1 | |
| 5 | Front Shield Lateral (RH) SNOW WHITE | QS152S38243 | 1 | |
| 5 | Front Shield Lateral (RH) SWISS RED | QS152S38358 | 1 | |
| 5 | Front Shield Lateral (RH) CERESIO BLUE | QS64152S38586 | 1 | |
| 5 | Front Shield Lateral (RH) TITANIUM GRAY | QS152S38850 | 1 | |
| 6 | Screw | QS903105014800K | 28 | |
| 7 | Bolt | QS00905016800K | 23 | M5*P0.8*16L W/Washer |
| 8 | Front Shield Upper Element(RH) | QS80127201 | 1 | |
| 9 | Nut-U | QS12120300B | 53 | |
| 10 | Panel, Bottom, RH | QS83501S3500000 | 1 | |
| 11 | Bolt | QS910030601680 | 4 | |
| 12 | Bolt | QS00706016800K | 7 | M6*P1.0*16L W/Washer |
| 13 | Washer | QS150071705000K | 14 | φ7.1*φ17*t5 |
| 14 | Bolt | QS00905012800K | 4 | M5*P0.8*12L W/Washer |
| 15 | Front Cover, RH TITANIUM GRAY | QS002S38850 | 1 | |
| 15 | Front Cover, RH CERESIO BLUE | QS69002S38586 | 1 | |
| 15 | Front Cover, RH SNOW WHITE | QS002S38243 | 1 | |
| 15 | Front Cover, RH RAW BLACK | QS002S38131 | 1 | |
| 15 | Front Cover, RH SWISS RED | QS002S38358 | 1 | |
| 16 | Cotter Pin | QS20312200 | 2 | |
| 17 | Shaft, Filler Cover | QS30206059 | 1 | |
| 18 | Plug, Rubbe, Hood | QS424S38000 | 1 | |
| 19 | Cover, Glove Box | QS134S38000 | 1 | |
| 20 | Rubber , Parking Brake Lever | QS708S38001 | 1 | |
| 21 | Cover, Main Switch BLACK | QS109S38112 | 1 | |
| 21 | Cover, Main Switch SWISS RED | QS109S38358 | 1 | |
| 22 | Glove Box | QS271S38001 | 1 | |
| 23 | Inner Box | QS131S38001 | 1 | |
| 24 | Rubber Seal, Glove Box | QS43205000515 | 1 | |
| 25 | Cover, Heating(R) | QS147S38000 | 1 | |
| 26 | Cover, Heating(L) | QS146S38000 | 1 | |
| 27 | U-Nut | QS3450400002T | 2 | M4*P0.6 |
| 28 | Rubber Seal, Glove Box | QS43205006750 | 1 | |
| 29 | Shaft, Filler Cover | QS30206045 | 1 | |
| 30 | Fastener, Small Storage Box | QS104S38000 | 2 | |
| 31 | Screw | QS907103008800K | 4 | |
| 32 | Radiator Cover, LH | QS118S3500000 | 1 | |
| 33 | Bolt | QS00006016810K | 4 | M6*P1.0*16L |
| 34 | Cover, Small Storage Box BLACK | QS227S38112 | 1 | |
| 34 | Cover, Small Storage Box SWISS RED | QS227S38358 | 1 | |
| 35 | Radiator Cover, RH | QS119S3500000 | 1 | |
| 36 | Bracket, Front Cover, RH | QS294S38000 | 1 | |
| 37 | Brakect, Front Cover, Middle | QS292S38000 | 1 | |
| 38 | Shield Element, Front Upper RAW BLACK | QS291S38131 | 1 | |
| 38 | Shield Element, Front Upper SNOW WHITE | QS291S38243 | 1 | |
| 38 | Shield Element, Front Upper SWISS RED | QS291S38358 | 1 | |
| 38 | Shield Element, Front Upper CERESIO BLUE | QS64291S38586 | 1 | |
| 38 | Shield Element, Front Upper TITANIUM GRAY | QS291S38850 | 1 | |
| 39 | Nut | QS0500500000C | 2 | M5*P0.8 |
| 40 | Shield Element, Front Lower | QS153S38000 | 1 | |
| 41 | Screw | QS903105012800K | 3 | M5*12L |
| 42 | Rivet, Plastic | QS120153000 | 4 | |
| 43 | Cover, Headlight | QS321S38000 | 1 | |
| 44 | Veneer, RH | QS50350N070 | 1 | |
| 45 | Veneer, LH | QS60350N070 | 1 | |
| 46 | Fender, Front, RH | QS853S38001 | 1 | |
| 47 | Washer | QS150071707500K | 8 | φ6.5*φ17.5*t7.5 |
| 48 | Bolt | QS910030601680 | 8 | |
| 49 | Rubber Mudguard, Fender | QS61115206001 | 1 | |
| 50 | Rivet, Plastic | QS120204000 | 12 | |
| 51 | Fender, Front, LH | QS852S38001 | 1 | |
| 52 | Bracket, Front Cover, LH | QS293S38000 | 1 | |
| 53 | Bolt | QS910030601680 | 2 | |
| 54 | Cover, HTS | QS860S38000 | 1 | |
| 55 | Bolt | QS00706012800K | 2 | M6*P1.0*12L |
| 56 | Front Shield Lateral (LH) RAW BLACK | QS151S38131 | 1 | |
| 56 | Front Shield Lateral (LH) SNOW WHITE | QS151S38243 | 1 | |
| 56 | Front Shield Lateral (LH) SWISS RED | QS151S38358 | 1 | |
| 56 | Front Shield Lateral (LH) CERESIO BLUE | QS64151S38586 | 1 | |
| 56 | Front Shield Lateral (LH) TITANIUM GRAY | QS151S38850 | 1 | |
| 57 | Bolt | QS10005016800K | 6 | M5*P0.8*16L |
| 58 | Bolt | QS00006014810K | 6 | M6*P1.0*14L |
| 59 | Front Shield Upper Element(LH) | QS80126201 | 1 | |
| 60 | Panel, Bottom, LH | QS601S3500000 | 1 | |
| 61 | Front Cover, LH RAW BLACK | QS001S38131 | 1 | |
| 61 | Front Cover, LH SNOW WHITE | QS001S38243 | 1 | |
| 61 | Front Cover, LH SWISS RED | QS001S38358 | 1 | |
| 61 | Front Cover, LH CERESIO BLUE | QS69001S38586 | 1 | |
| 61 | Front Cover, LH TITANIUM GRAY | QS001S38850 | 1 | |
| 62 | Rubber Mudguard, Fender | QS61115205001 | 1 |
Q.TY(1) = Mindestmenge erforderlich
|
|
