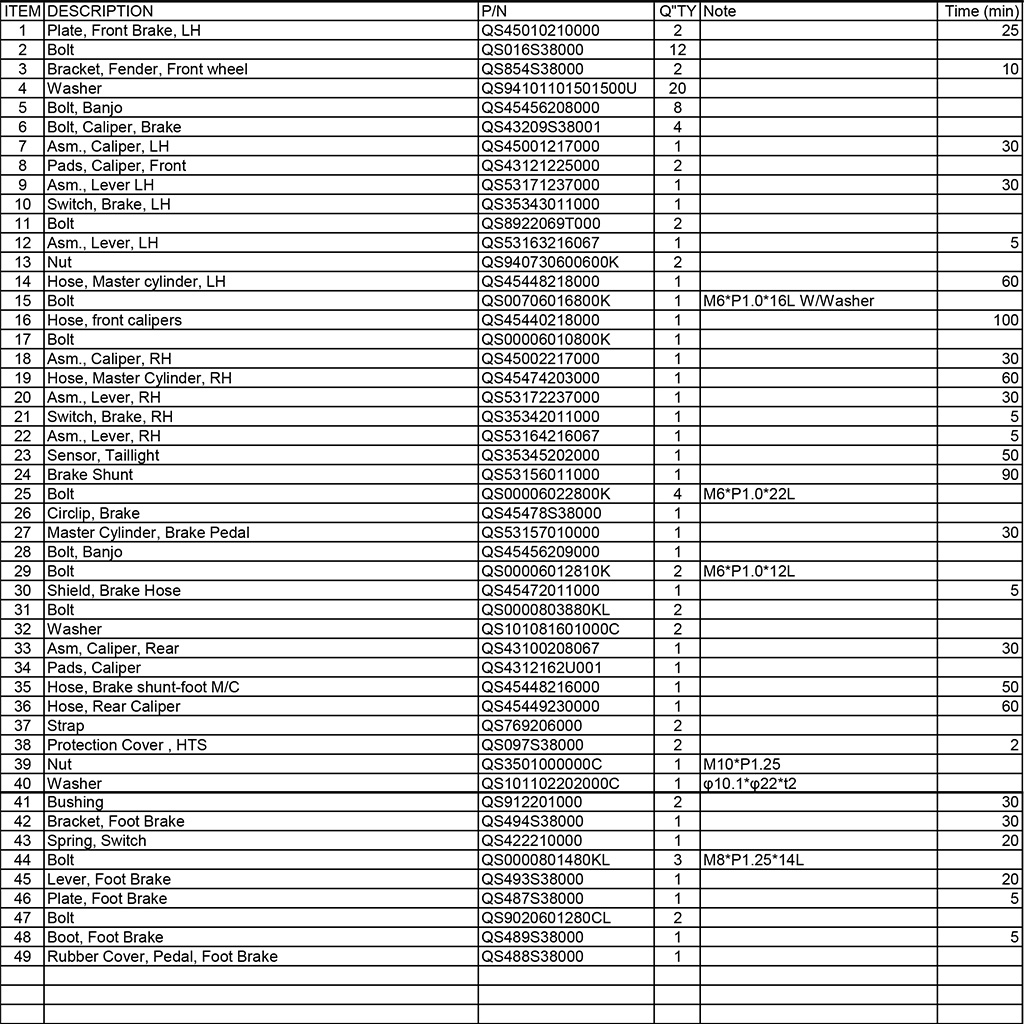

| Item | Description | P/N | Q.ty(1) | Note |
|---|---|---|---|---|
| 1 | Plate, Front Brake, LH | QS45010210000 | 2 | |
| 2 | Bolt | QS016S38000 | 12 | |
| 3 | Bracket, Fender, Front wheel | QS854S38000 | 2 | |
| 4 | Washer | QS94101101501500U | 20 | |
| 5 | Bolt, Banjo | QS45456208000 | 8 | |
| 6 | Bolt, Caliper, Brake | QS43209S38001 | 4 | |
| 7 | Asm., Caliper, LH | QS45001217000 | 1 | |
| 8 | Pads, Caliper, Front | QS43121225000 | 2 | |
| 9 | Asm., Lever LH | QS53171237000 | 1 | |
| 10 | Switch, Brake, LH | QS35343011000 | 1 | |
| 11 | Bolt | QS8922069T000 | 2 | |
| 12 | Asm., Lever, LH | QS53163216067 | 1 | |
| 13 | Nut | QS940730600600K | 2 | |
| 14 | Hose, Master cylinder, LH | QS45448218000 | 1 | |
| 15 | Bolt | QS00706016800K | 1 | M6*P1.0*16L W/Washer |
| 16 | Hose, front calipers | QS45440218000 | 1 | |
| 17 | Bolt | QS00006010800K | 1 | |
| 18 | Asm., Caliper, RH | QS45002217000 | 1 | |
| 19 | Hose, Master Cylinder, RH | QS45474203000 | 1 | |
| 20 | Asm., Lever, RH | QS53172237000 | 1 | |
| 21 | Switch, Brake, RH | QS35342011000 | 1 | |
| 22 | Asm., Lever, RH | QS53164216067 | 1 | |
| 23 | Sensor, Taillight | QS35345202000 | 1 | |
| 24 | Brake Shunt | QS53156011000 | 1 | |
| 25 | Bolt | QS00006022800K | 4 | M6*P1.0*22L |
| 26 | Circlip, Brake | QS45478S38000 | 1 | |
| 27 | Master Cylinder, Brake Pedal | QS53157010000 | 1 | |
| 28 | Bolt, Banjo | QS45456209000 | 1 | |
| 29 | Bolt | QS00006012810K | 2 | M6*P1.0*12L |
| 30 | Shield, Brake Hose | QS45472011000 | 1 | |
| 31 | Bolt | QS0000803880KL | 2 | |
| 32 | Washer | QS101081601000C | 2 | |
| 33 | Asm, Caliper, Rear | QS43100208067 | 1 | |
| 34 | Pads, Caliper | QS4312162U001 | 1 | |
| 35 | Hose, Brake shunt-foot M/C | QS45448216000 | 1 | |
| 36 | Hose, Rear Caliper | QS45449230000 | 1 | |
| 37 | Strap | QS769206000 | 2 | |
| 38 | Protection Cover , HTS | QS097S38000 | 2 | |
| 39 | Nut | QS3501000000C | 1 | M10*P1.25 |
| 40 | Washer | QS101102202000C | 1 | φ10.1*φ22*t2 |
| 41 | Bushing | QS912201000 | 2 | |
| 42 | Bracket, Foot Brake | QS494S38000 | 1 | |
| 43 | Spring, Switch | QS422210000 | 1 | |
| 44 | Bolt | QS0000801480KL | 3 | M8*P1.25*14L |
| 45 | Lever, Foot Brake | QS493S38000 | 1 | |
| 46 | Plate, Foot Brake | QS487S38000 | 1 | |
| 47 | Bolt | QS9020601280CL | 2 | |
| 48 | Boot, Foot Brake | QS489S38000 | 1 | |
| 49 | Rubber Cover, Pedal, Foot Brake | QS488S38000 | 1 |
Q.TY(1) = Mindestmenge erforderlich
|
|
