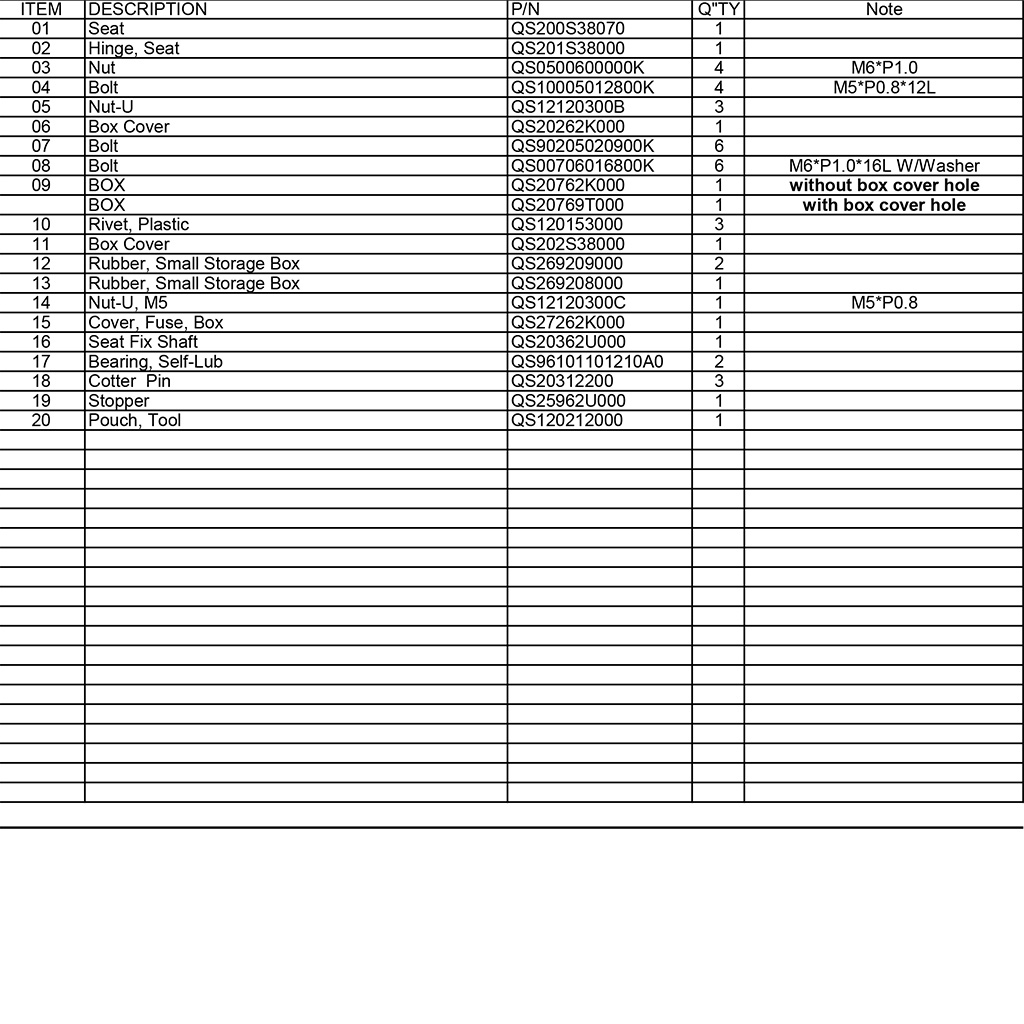

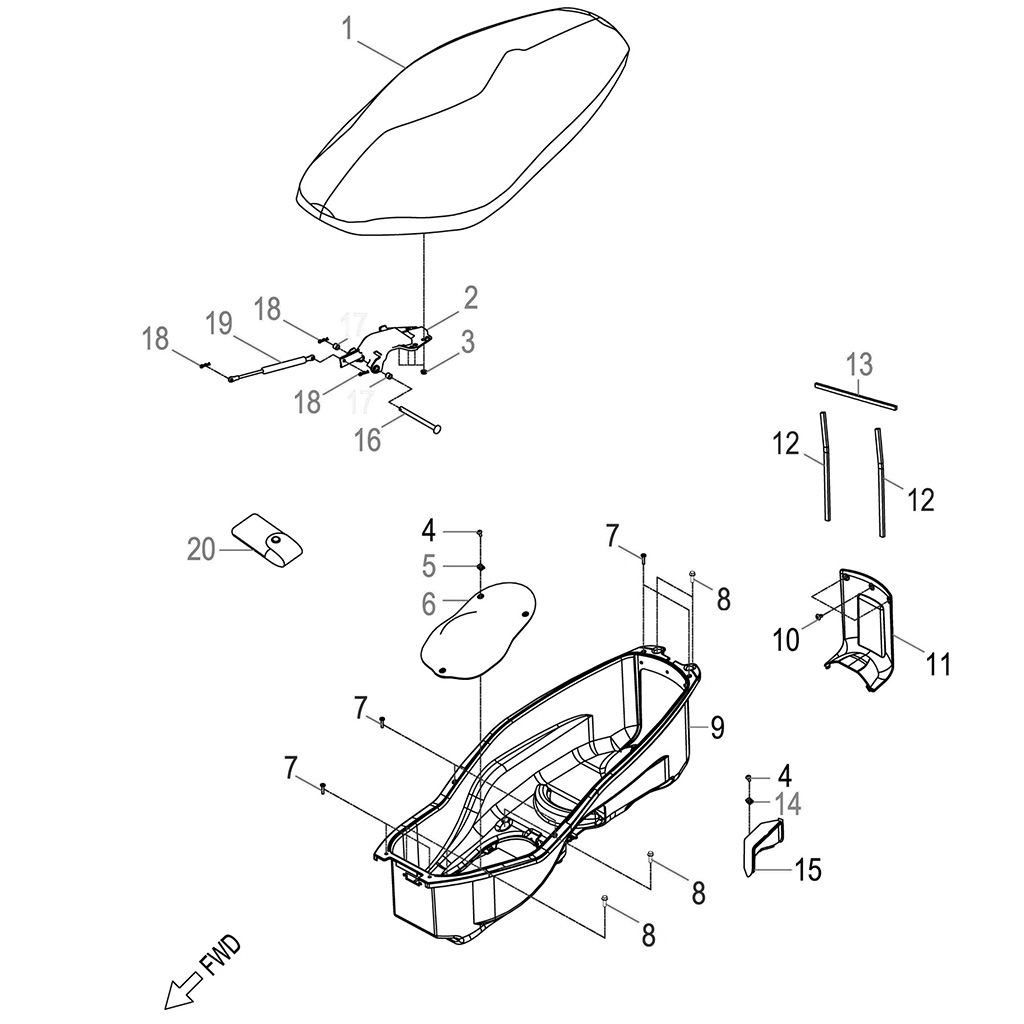

Item	Description	P/N	Q.ty⁽¹⁾	Note
	BOX	QS20769T000	1	with box cover hole
1	Seat	QS200S38070	1
2	Hinge, Seat	QS201S38000	1
3	Nut	QS0500600000K	4	M6*P1.0
4	Bolt	QS10005012800K	4	M5P0.812L
5	Nut-U	QS12120300B	3
6	Box Cover	QS20262K000	1
7	Bolt	QS90205020900K	6
8	Bolt	QS00706016800K	6	M6P1.016L W/Washer
9	BOX	QS20762K000	1	without box cover hole
10	Rivet, Plastic	QS120153000	3
11	Box Cover	QS202S38000	1
12	Rubber, Small Storage Box	QS269209000	2
13	Rubber, Small Storage Box	QS269208000	1
14	Nut-U, M5	QS12120300C	1	M5*P0.8
15	Cover, Fuse, Box	QS27262K000	1
16	Seat Fix Shaft	QS20362U000	1
17	Bearing, Self-Lub	QS96101101210A0	2
18	Cotter Pin	QS20312200	3
19	Stopper	QS25962U000	1
20	Pouch, Tool	QS120212000	1

Q.TY⁽¹⁾ = Mindestmenge erforderlich
