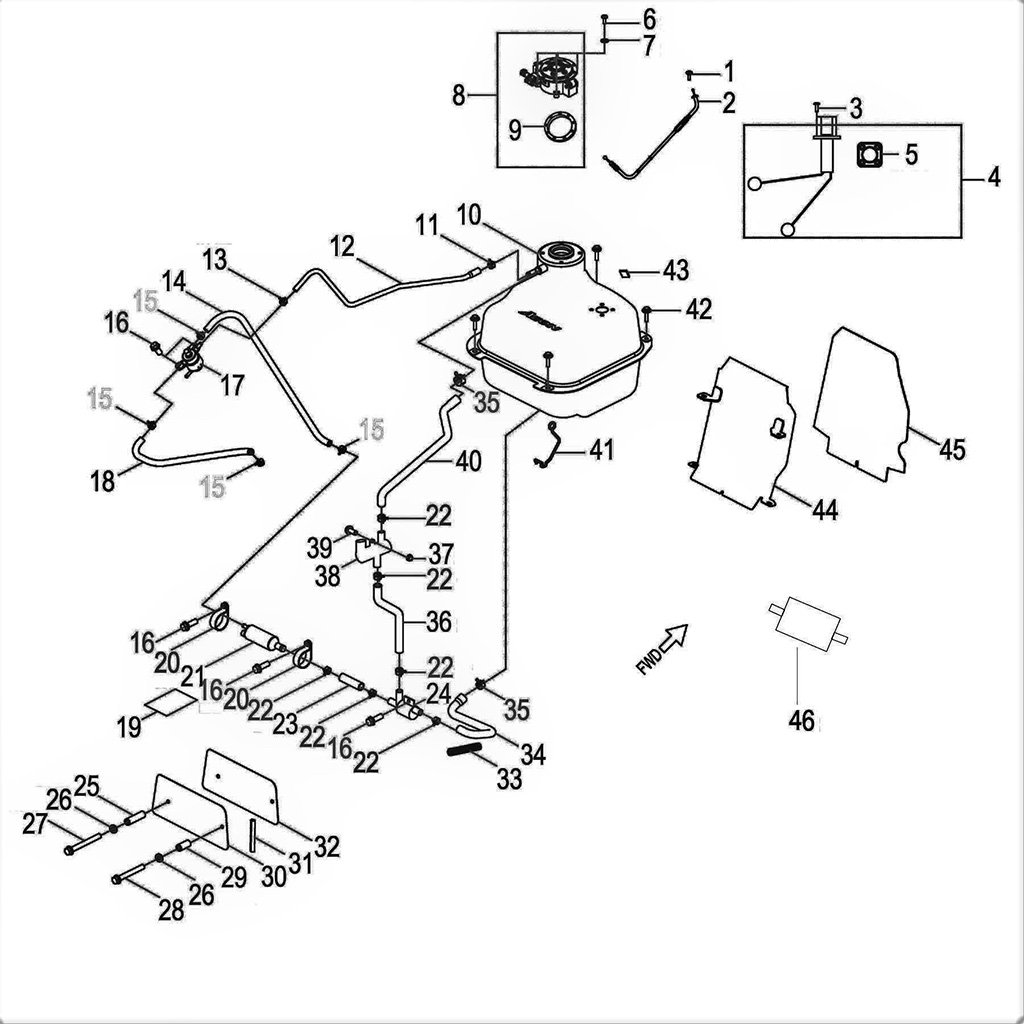

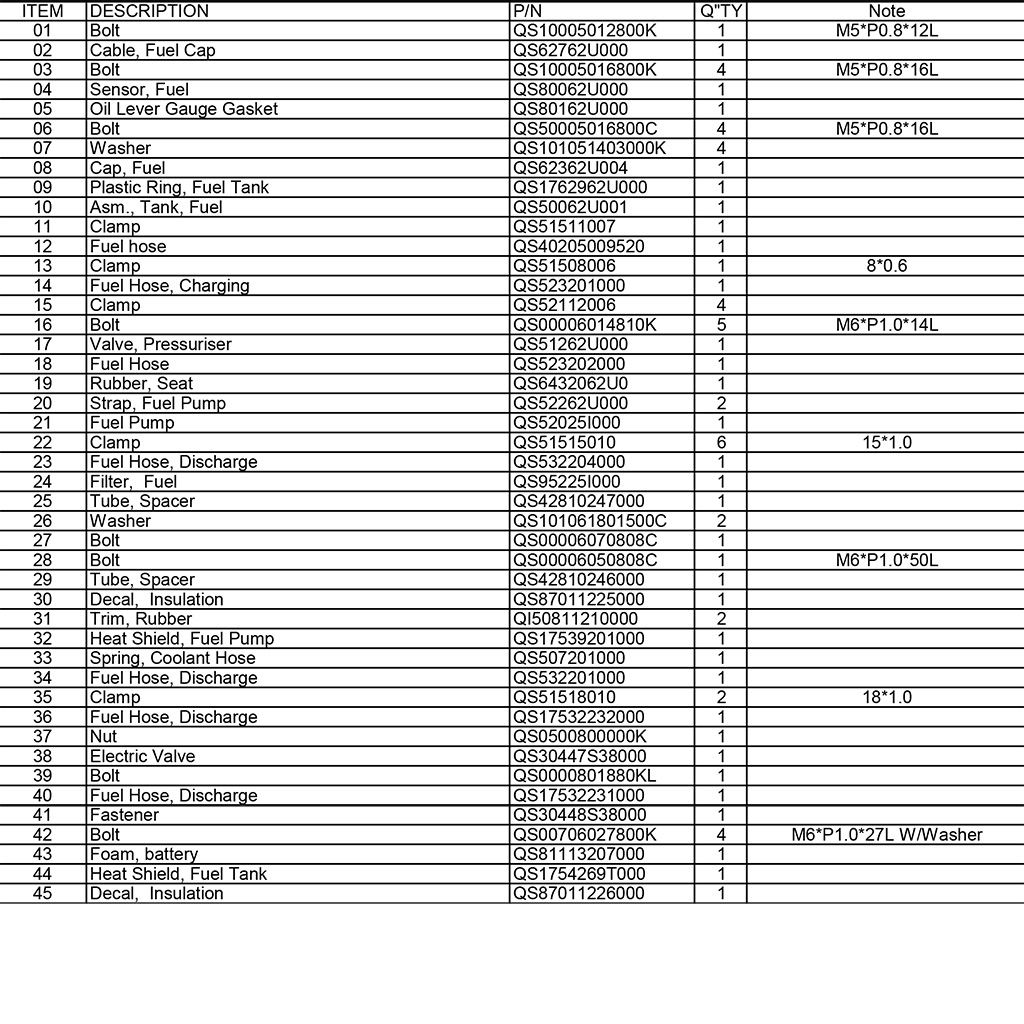

| Item | Description | P/N | Q.ty(1) | Note |
|---|---|---|---|---|
| 1 | Bolt | QS10005012800K | 1 | M5*P0.8*12L |
| 2 | Cable, Fuel Cap | QS627S38000 | 1 | |
| 3 | Bolt | QS10005016800K | 4 | M5*P0.8*16L |
| 4 | Sensor, Fuel | QS80062U000 | 1 | |
| 5 | Oil Lever Gauge Gasket | QS80162U000 | 1 | |
| 6 | Bolt | QS50005016800C | 4 | M5*P0.8*16L |
| 7 | Washer | QS101051403000K | 4 | |
| 8 | Cap, Fuel | QS62362U004 | 1 | |
| 9 | Plastic Ring, Fuel Tank | QS1762962U000 | 1 | |
| 10 | Asm., Tank, Fuel | QS50062U001 | 1 | |
| 11 | Clamp | QS51511007 | 1 | |
| 12 | Fuel hose | QS40205009520 | 1 | |
| 13 | Clamp | QS51508006 | 1 | 8*0.6 |
| 14 | Fuel Hose, Charging | QS523201000 | 1 | |
| 15 | Clamp | QS52112006 | 4 | |
| 16 | Bolt | QS00006014810K | 5 | M6*P1.0*14L |
| 17 | Valve, Pressuriser | QS51262U000 | 1 | |
| 18 | Fuel Hose | QS523202000 | 1 | |
| 19 | Rubber, Seat | QS6432062U0 | 1 | |
| 20 | Strap, Fuel Pump | QS52262U000 | 2 | |
| 21 | Fuel Pump | QS52025I000 | 1 | |
| 22 | Clamp | QS51515010 | 6 | 15*1.0 |
| 23 | Fuel Hose, Discharge | QS532204000 | 1 | |
| 24 | Filter, Fuel | QS95225I000 | 1 | |
| 25 | Tube, Spacer | QS42810247000 | 1 | |
| 26 | Washer | QS101061801500C | 2 | |
| 27 | Bolt | QS00006070808C | 1 | |
| 28 | Bolt | QS00006050808C | 1 | M6*P1.0*50L |
| 29 | Tube, Spacer | QS42810246000 | 1 | |
| 30 | Decal, Insulation | QS87011225000 | 1 | |
| 31 | Trim, Rubber | QI50811210000 | 2 | |
| 32 | Heat Shield, Fuel Pump | QS17539201000 | 1 | |
| 33 | Spring, Coolant Hose | QS507201000 | 1 | |
| 34 | Fuel Hose, Discharge | QS532201000 | 1 | |
| 35 | Clamp | QS51518010 | 2 | 18*1.0 |
| 36 | Fuel Hose, Discharge | QS17532232000 | 1 | |
| 37 | Nut | QS0500800000K | 1 | |
| 38 | Electric Valve | QS30447S38000 | 1 | |
| 39 | Bolt | QS0000801880KL | 1 | |
| 40 | Fuel Hose, Discharge | QS17532231000 | 1 | |
| 41 | Fastener | QS30448S38000 | 1 | |
| 42 | Bolt | QS00706027800K | 4 | M6*P1.0*27L W/Washer |
| 43 | Foam, battery | QS81113207000 | 1 | |
| 44 | Heat Shield, Fuel Tank | QS1754269T000 | 1 | |
| 45 | Decal, Insulation | QS87011226000 | 1 |
Q.TY(1) = Mindestmenge erforderlich
|
|
