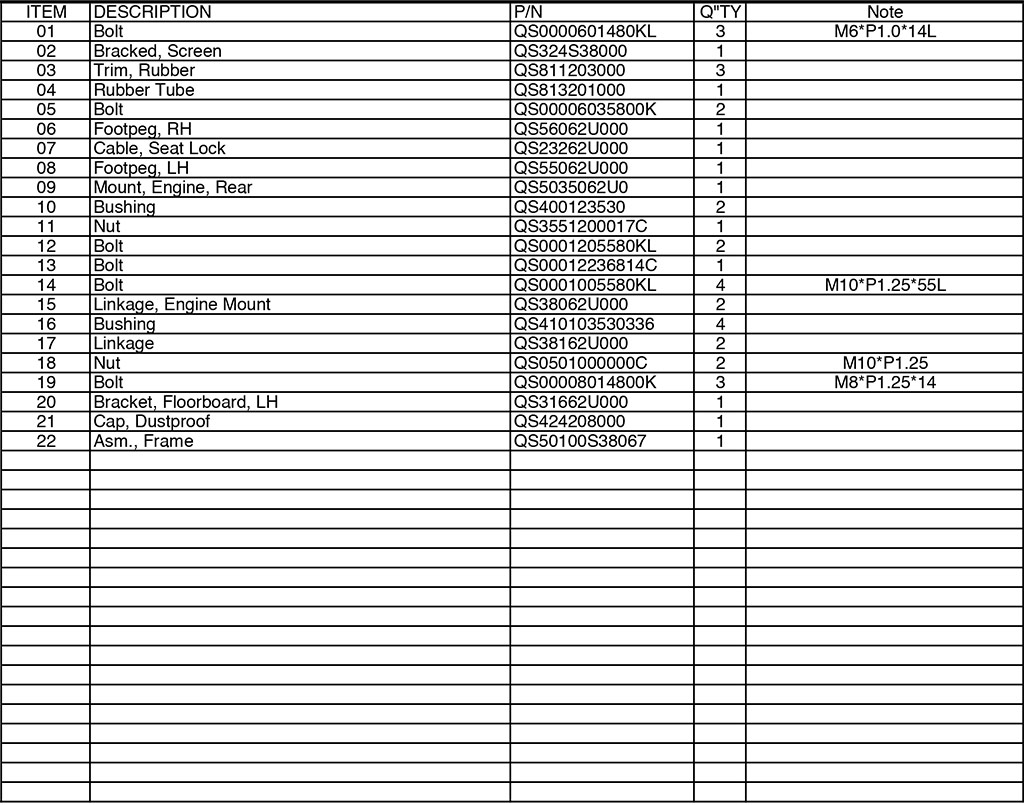

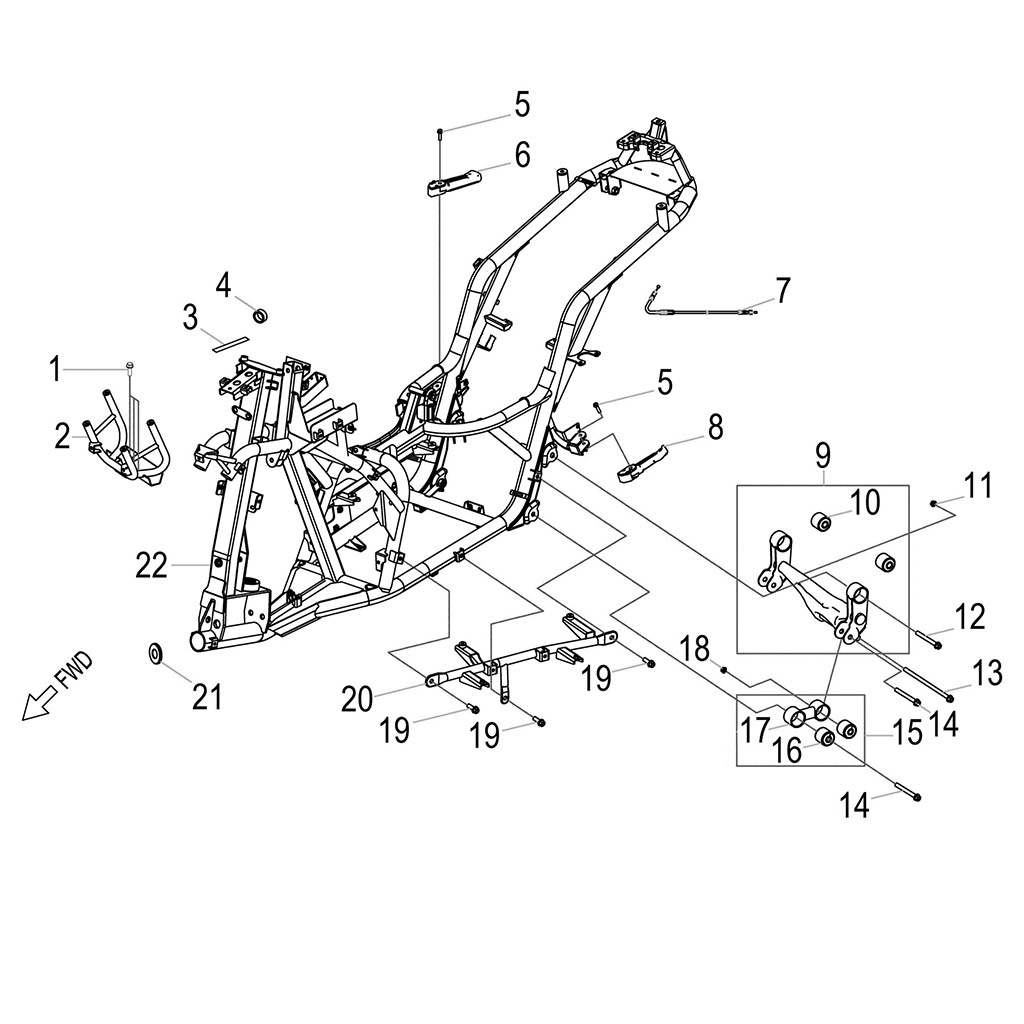

Item	Description	P/N	Q.ty⁽¹⁾	Note
1	Bolt	QS0000601480KL	3	M6P1.014L
2	Bracked, Screen	QS324S38000	1
3	Trim, Rubber	QS811203000	3
4	Rubber Tube	QS813201000	1
5	Bolt	QS00006035800K	2
6	Footpeg, RH	QS56062U000	1
7	Cable, Seat Lock	QS23262U000	1
8	Footpeg, LH	QS55062U000	1
9	Mount, Engine, Rear	QS5035062U0	1
10	Bushing	QS400123530	2
11	Nut	QS3551200017C	1
12	Bolt	QS0001205580KL	2
13	Bolt	QS00012236814C	1
14	Bolt	QS0001005580KL	4	M10P1.2555L
15	Linkage, Engine Mount	QS38062U000	2
16	Bushing	QS410103530336	4
17	Linkage	QS38162U000	2
18	Nut	QS0501000000C	2	M10*P1.25
19	Bolt	QS00008014800K	3	M8P1.2514
20	Bracket, Floorboard, LH	QS31662U000	1
21	Cap, Dustproof	QS424208000	1
22	Asm., Frame	QS50100S38067	1

Q.TY⁽¹⁾ = Mindestmenge erforderlich
