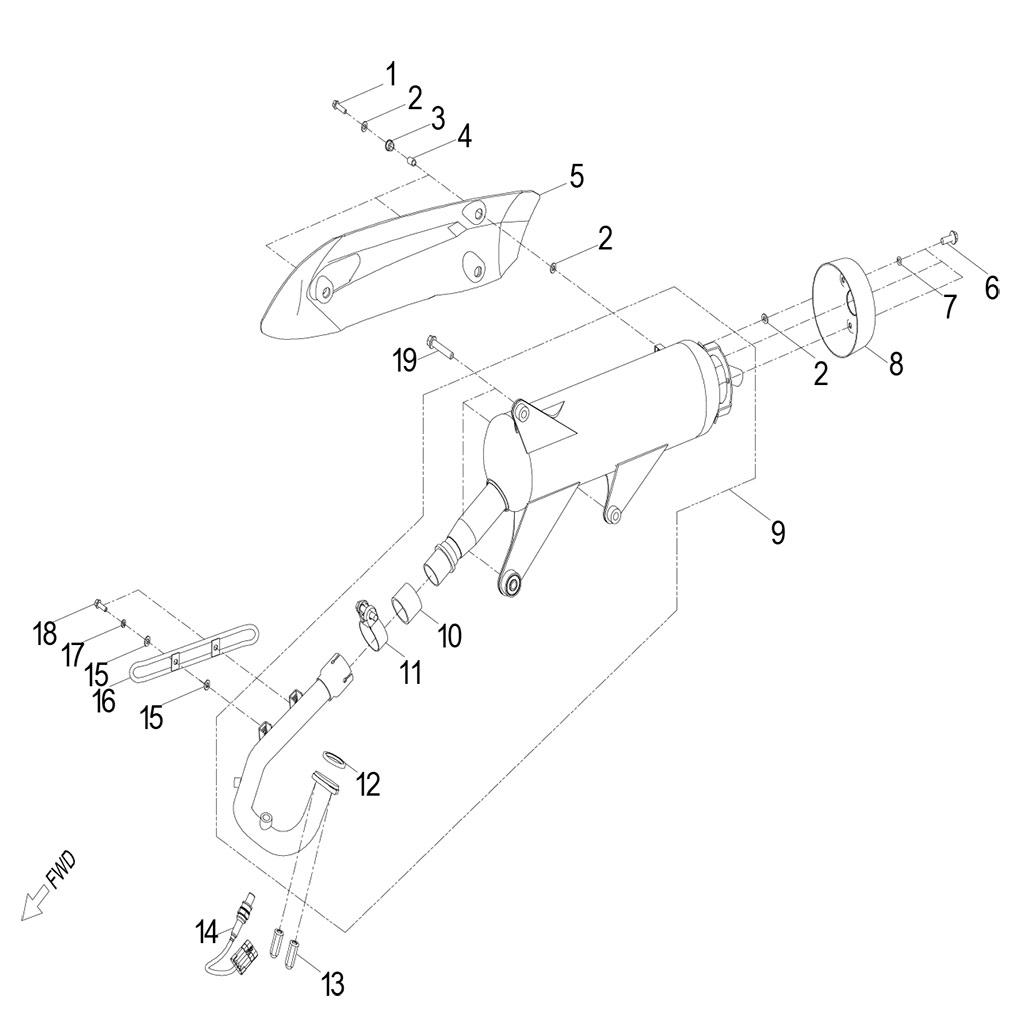

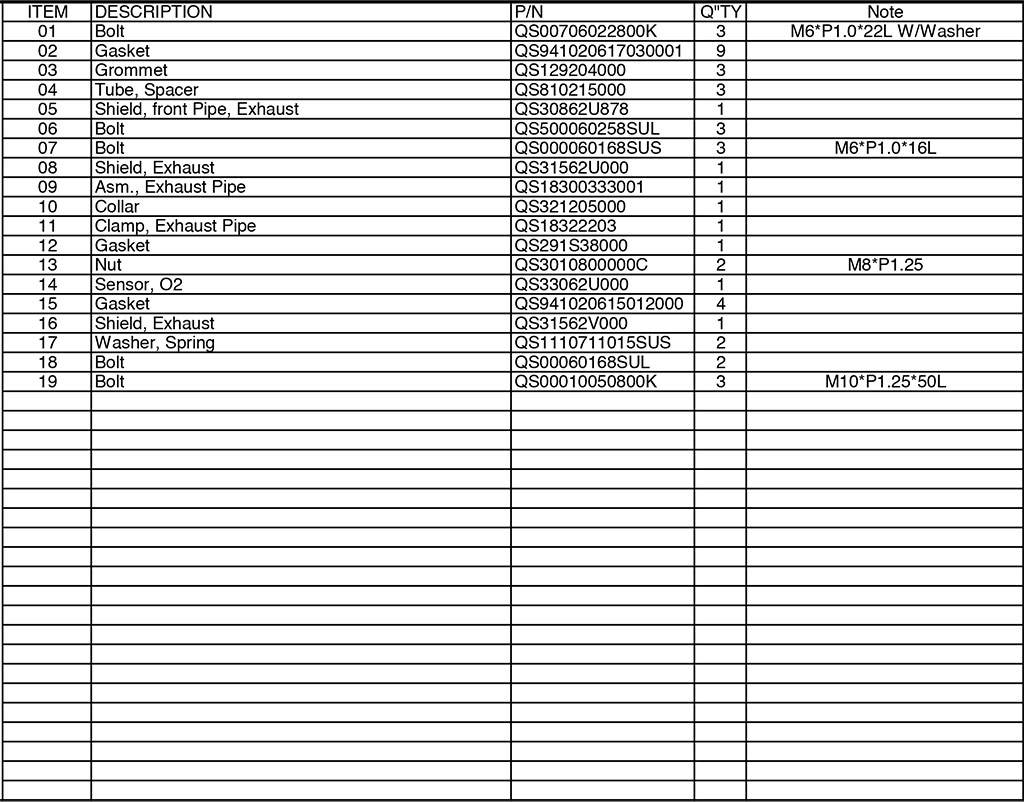

Item	Description	P/N	Q.ty⁽¹⁾	Note
1	Bolt	QS00706022800K	3	M6P1.022L W/Washer
2	Gasket	QS941020617030001	9
3	Grommet	QS129204000	3
4	Tube, Spacer	QS810215000	3
5	Shield, front Pipe, Exhaust	QS30862U878	1
6	Bolt	QS500060258SUL	3
7	Bolt	QS000060168SUS	3	M6P1.016L
8	Shield, Exhaust	QS31562U000	1
9	Asm., Exhaust Pipe	QS18300333001	1
10	Collar	QS321205000	1
11	Clamp, Exhaust Pipe	QS18322203	1
12	Gasket	QS291S38000	1
13	Nut	QS3010800000C	2	M8*P1.25
14	Sensor, O2	QS33062U000	1
15	Gasket	QS941020615012000	4
16	Shield, Exhaust	QS31562V000	1
17	Washer, Spring	QS1110711015SUS	2
18	Bolt	QS00060168SUL	2
19	Bolt	QS00010050800K	3	M10P1.2550L

Q.TY⁽¹⁾ = Mindestmenge erforderlich
