Quadro 3 Euro4 TAC63300 > Suspension

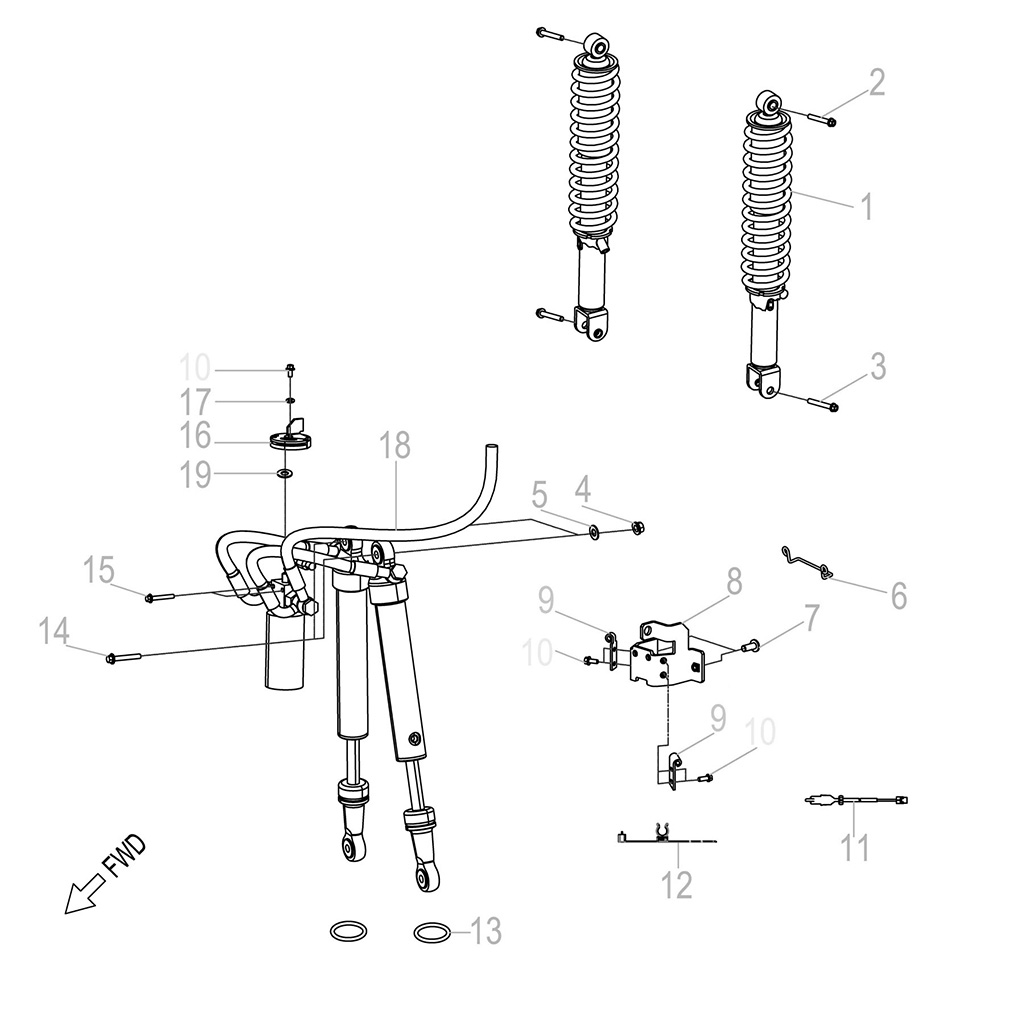

Suspension
Item Description P/N Q.ty(1) Note
1 Asm., Suspension, Rear QS52400259067 2
2 Bolt QS0001004080KL 2 M10*P1.25*40L
3 Bolt QS0001004380KL 2 M10*P1.25*43L
4 Nut QS3501000000C 2 M10*P1.25
5 Washer QS101102202000K 2 φ10.1*φ22*t2
6 Hook, Oil Hose, Parking Brake QS475S38000 1
7 Bolt QS00006020810K 2 M6*P1.0*20L
8 Bracket, HTS QS096S38000 1
9 Bracket, Pump, Parking Brake QS099S38000 2
10 Bolt QS00005012800K 5 M5*P0.8*12L
11 Switch, HTS lock QS926201000 1
12 Strap, Oil Hose QS753206000 1
13 O-Ring QS21003830 2 38*3
14 Bolt QS0001004080KL 2 M10*P1.25*40L
15 Bolt QS00005035800K 2 M5*P0.8*35L
16 Command Wheel, Pump, Parking Brake QS145S38001 1
17 Washer QS101051901000K 1 φ5.1*φ19*t1
18 Asm., HTS QS090S38002 1

Q.TY(1) = Quantité minimale requise
