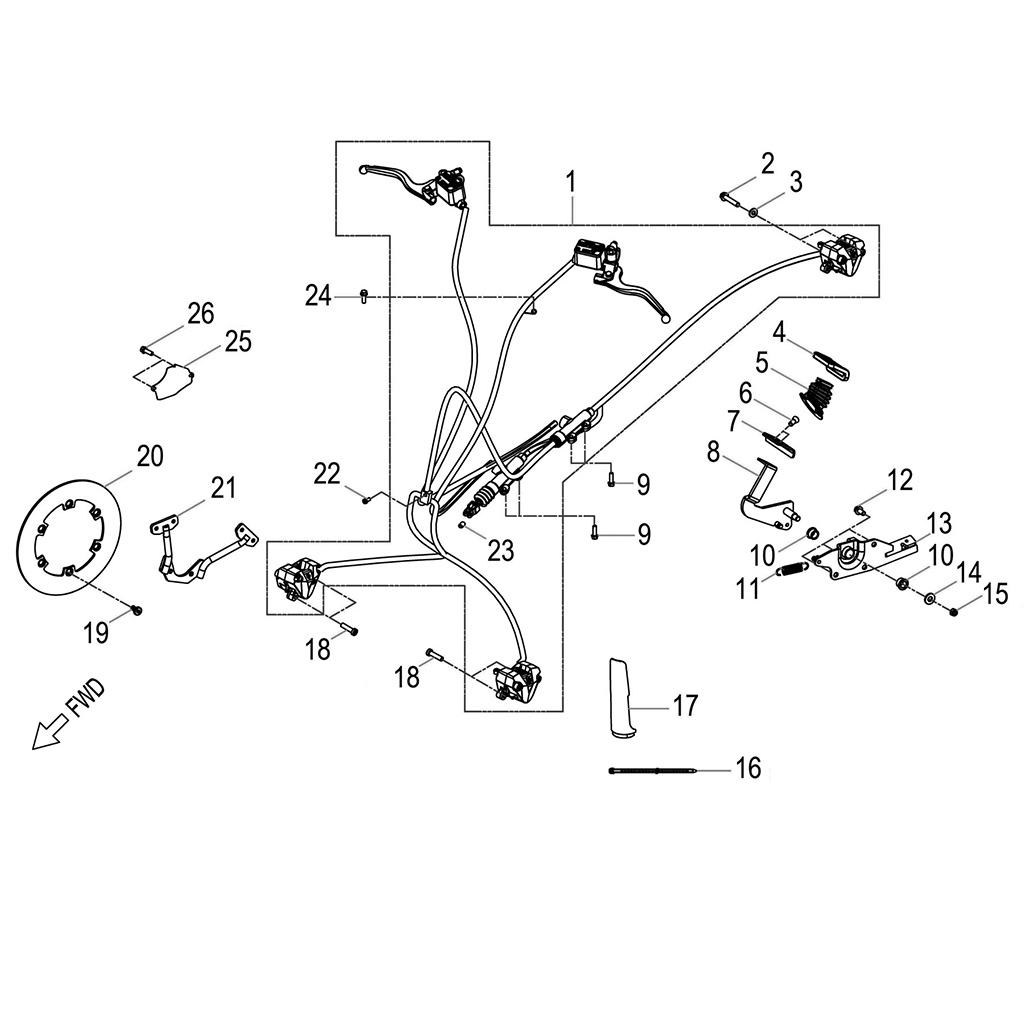

| Item | Description | P/N | Q.ty(1) | Note |
|---|---|---|---|---|
| 1 | Asm. Front and Rear Brake | QS030S38000 | 1 | |
| 2 | Bolt | QS0000803880KL | 2 | |
| 3 | Washer | QS101081601000C | 2 | |
| 4 | Rubber Cover, Pedal, Foot Brake | QS488S38000 | 1 | |
| 5 | Boot, Foot Brake | QS489S38000 | 1 | |
| 6 | Bolt | QS9020601280CL | 2 | |
| 7 | Plate, Foot Brake | QS487S38000 | 1 | |
| 8 | Lever, Foot Brake | QS493S38000 | 1 | |
| 9 | Bolt | QS00006022800K | 4 | |
| 10 | Bushing | QS912201000 | 2 | M6*P1.0*22L |
| 11 | Spring, Switch | QS422210000 | 1 | |
| 12 | Bolt | QS0000801480KL | 3 | |
| 13 | Bracket, Foot Brake | QS494S38000 | 1 | M8*P1.25*14L |
| 14 | Washer | QS101102202000C | 1 | |
| 15 | Nut | QS3501000000C | 1 | φ10.1*φ22*t2 |
| 16 | Strap | QS769206000 | 2 | M10*P1.25 |
| 17 | Protection Cover , HTS | QS097S38000 | 2 | |
| 18 | Bolt, Caliper, Brake | QS43209S38001 | 4 | |
| 19 | Bolt | QS016S38000 | 12 | |
| 20 | Disc, Front Brake | QS010S38000 | 2 | |
| 21 | Bracket, Fender, Front wheel | QS854S38000 | 2 | |
| 22 | Bolt | QS00006010800K | 1 | |
| 23 | Fastener, Pumper, Brake | QS45476S38000 | 1 | |
| 24 | Bolt | QS00706016800K | 1 | M6*P1.0*16L W/Washer |
| 25 | Shield, Brake Hose | QS47262U000 | 1 | |
| 26 | Bolt | QS00006012810K | 2 | M6*P1.0*12L |
Q.TY(1) = Quantité minimale requise
|
|
