QUADRO 4 TAC63230 > Asm speedometer

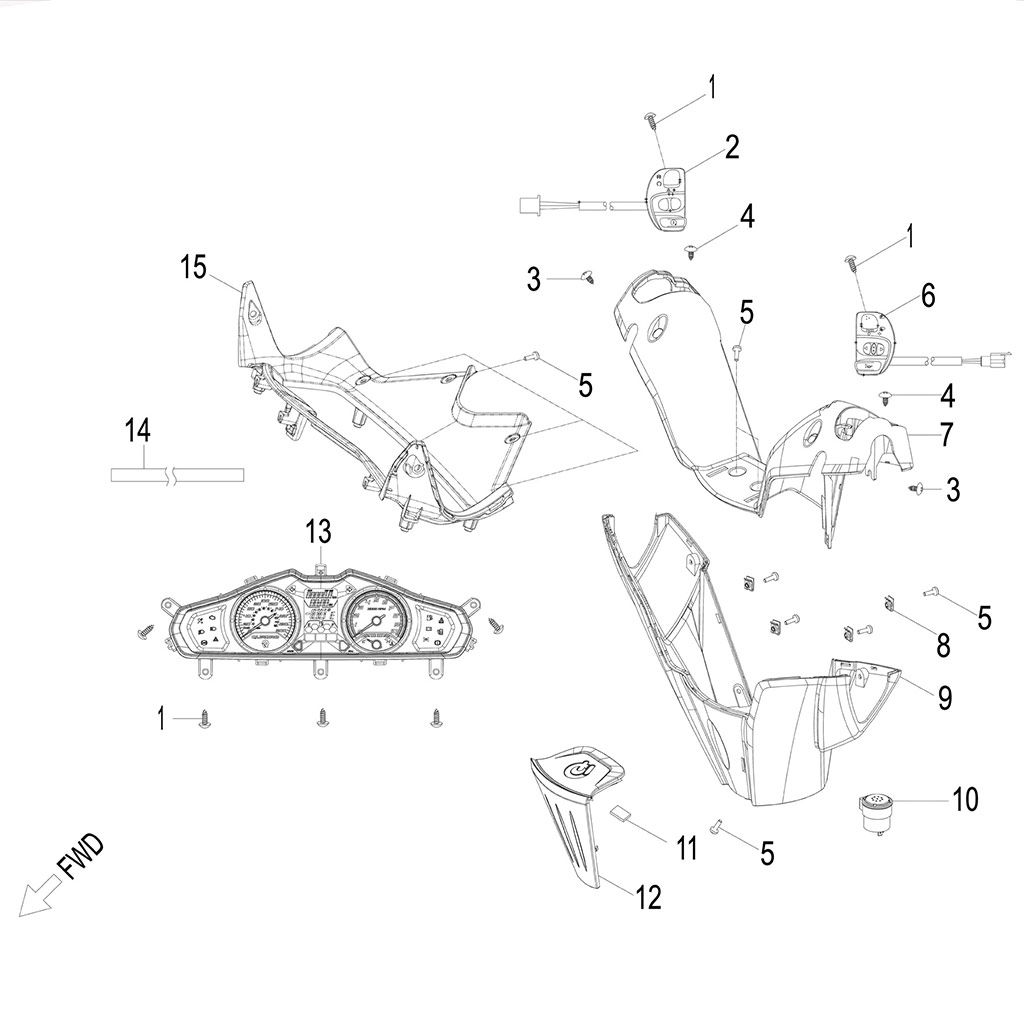

Asm speedometer

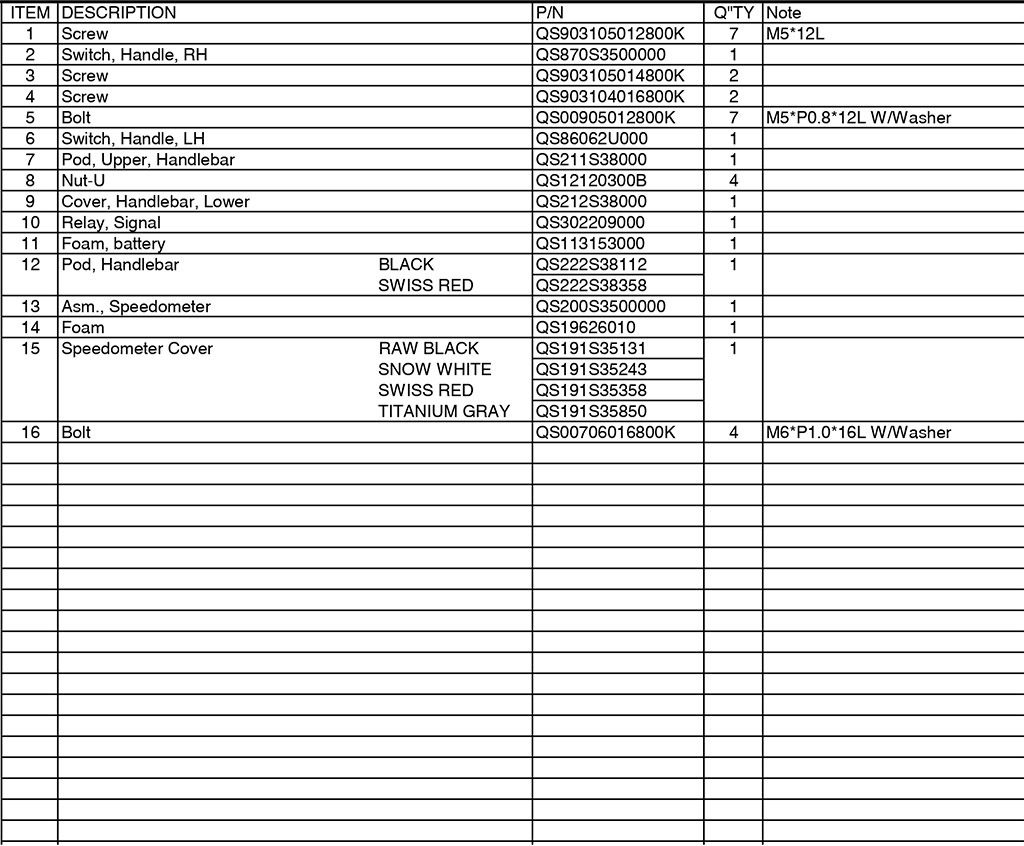

Item Description P/N Q.ty(1) Note
1 Screw QS903105012800K 7 M5*12L
2 Switch, Handle, RH QS870S3500000 1
3 Screw QS903105014800K 2
4 Screw QS903104016800K 2
5 Bolt QS00905012800K 7 M5*P0.8*12L W/Washer
6 Switch, Handle, LH QS86062U000 1
7 Pod, Upper, Handlebar QS211S38000 1
8 Nut-U QS12120300B 4
9 Cover, Handlebar, Lower QS212S38000 1
10 Relay, Signal QS302209000 1
11 Foam, battery QS113153000 1
12 Pod, Handlebar QS222S38112 1
12 QS222S38358
13 Asm., Speedometer QS200S3500000 1
14 Foam QS19626010 1
15 Speedometer Cover QS191S35131 1
15 Speedometer Cover QS191S35243 1
15 Speedometer Cover QS191S35358 1
15 Speedometer Cover QS191S35850 1
16 Bolt QS00706016800K 4 M6*P1.0*16L W/Washer

Q.TY(1) = Quantité minimale requise
