Qooder TAC63410 > Rear wheel

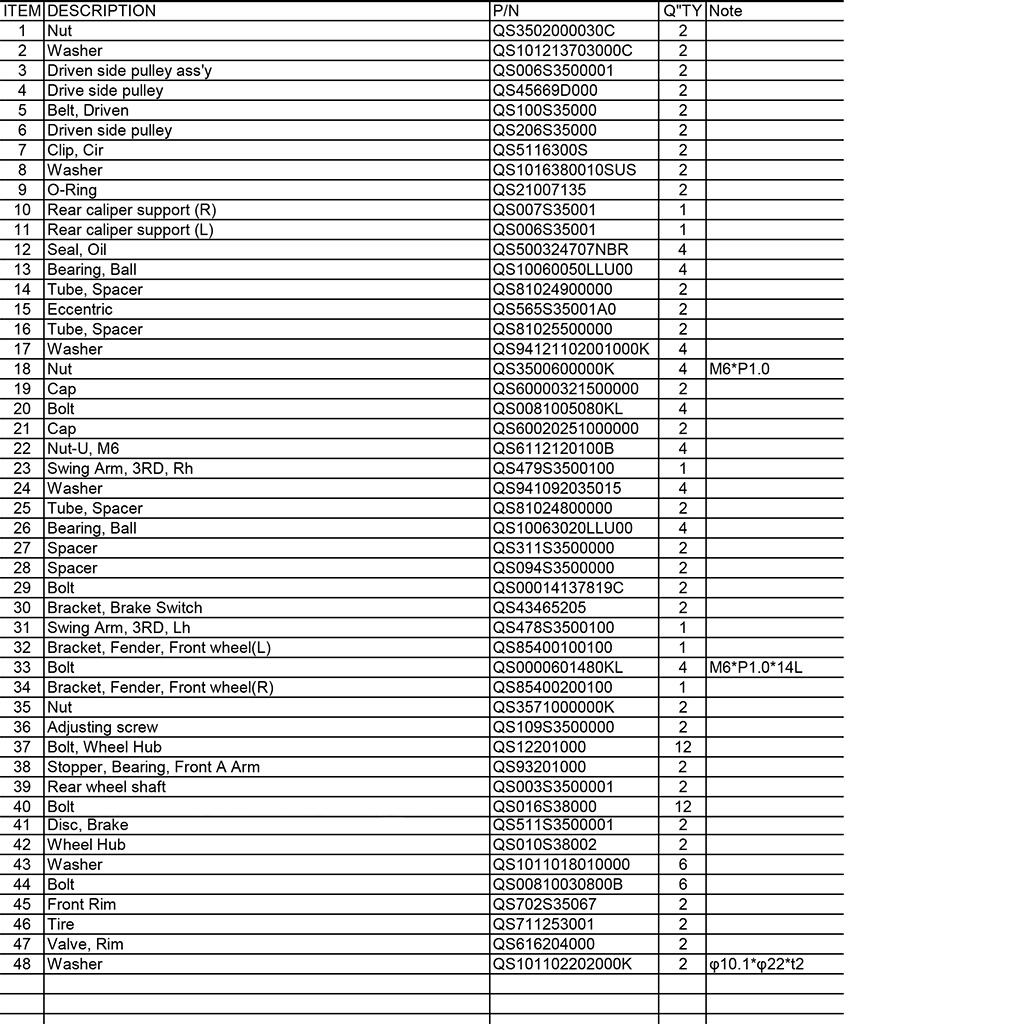

Rear wheel
Item Description P/N Q.ty(1) Note
1 Nut QS3502000030C 2
2 Washer QS101213703000C 2
3 Driven side pulley ass'y QS006S3500001 2
4 Drive side pulley QS45669D000 2
5 Belt, Driven QS100S35000 2
6 Driven side pulley QS206S35000 2
7 Clip, Cir QS5116300S 2
8 Washer QS1016380010SUS 2
9 O-Ring QS21007135 2
10 Rear caliper support (R) QS007S35001 1
11 Rear caliper support (L) QS006S35001 1
12 Seal, Oil QS500324707NBR 4
13 Bearing, Ball QS10060050LLU00 4
14 Tube, Spacer QS81024900000 2
15 Eccentric QS565S35001A0 2
16 Tube, Spacer QS81025500000 2
17 Washer QS94121102001000K 4
18 Nut QS3500600000K 4 M6*P1.0
19 Cap QS60000321500000 2
20 Bolt QS0081005080KL 4
21 Cap QS60020251000000 2
22 Nut-U, M6 QS6112120100B 4
23 Swing Arm, 3RD, Rh QS479S3500100 1
24 Washer QS941092035015 4
25 Tube, Spacer QS81024800000 2
26 Bearing, Ball QS10063020LLU00 4
27 Spacer QS311S3500000 2
28 Spacer QS094S3500000 2
29 Bolt QS00014137819C 2
30 Bracket, Brake Switch QS43465205 2
31 Swing Arm, 3RD, Lh QS478S3500100 1
32 Bracket, Fender, Front wheel(L) QS85400100100 1
33 Bolt QS0000601480KL 4 M6*P1.0*14L
34 Bracket, Fender, Front wheel(R) QS85400200100 1
35 Nut QS3571000000K 2
36 Adjusting screw QS109S3500000 2
37 Bolt, Wheel Hub QS12201000 12
38 Stopper, Bearing, Front A Arm QS93201000 2
39 Rear wheel shaft QS003S3500001 2
40 Bolt QS016S38000 12
41 Disc, Brake QS511S3500001 2
42 Wheel Hub QS010S38002 2
43 Washer QS1011018010000 6
44 Bolt QS00810030800B 6
45 Front Rim QS702S35067 2
46 Tire QS711253001 2
47 Valve, Rim QS616204000 2
48 Washer QS101102202000K 2 φ10.1*φ22*t2

Q.TY(1) = Minimum quantity required
