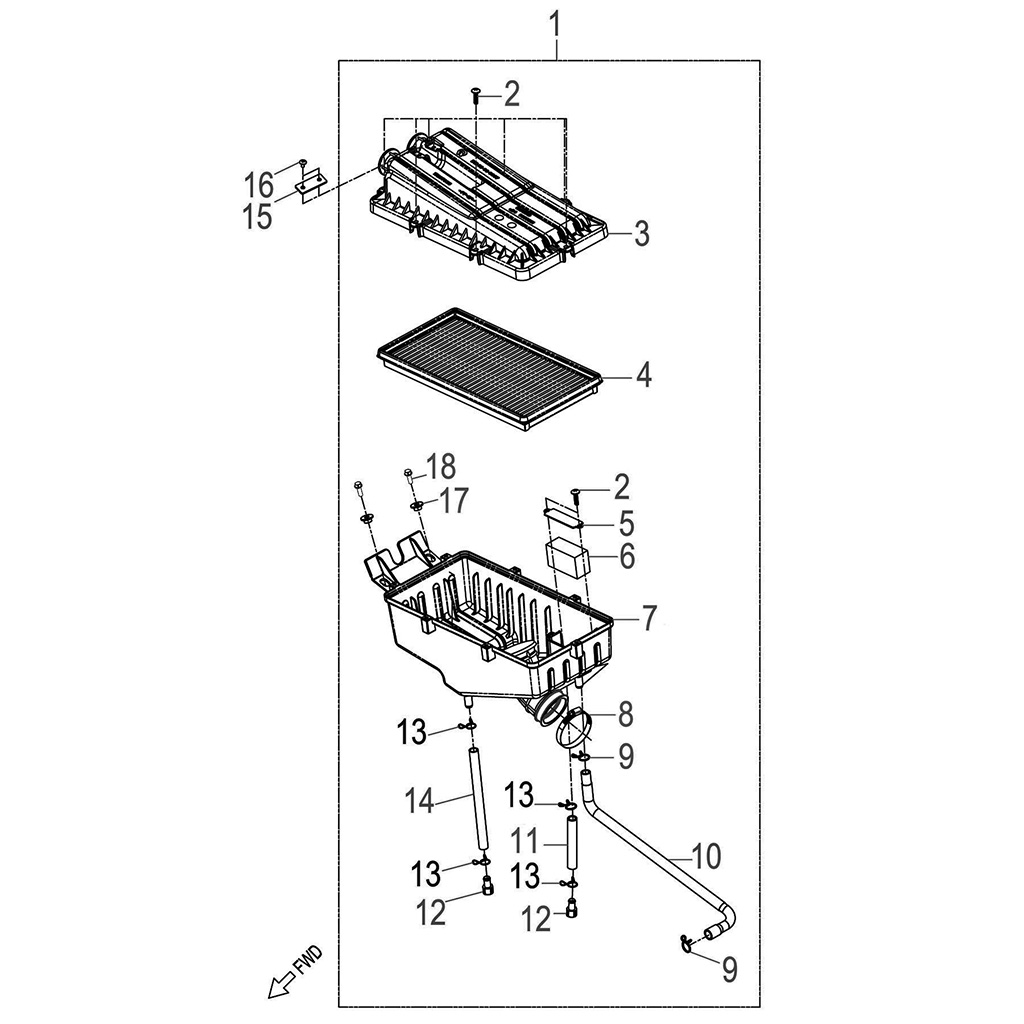

Item	Description	P/N	Q.ty⁽¹⁾	Note
1	Asm., Cleaner, Air	QS1720080D002	1
2	Screw	QS903105020800K	9	M5*20L
3	Cover, Air Cleaner ass'y	QS1721780D000	1
4	Filter, Air Cleaner	QS205S35000	1
5	Screw	QS903105020800K	2	M5*20L
6	sponge fixing plate	QS384S35000	1
7	Filter, Oil Separator	QS388S35000	1
8	Housing, Air Cleaner	QS1721880D000	1
9	Strap	QS9452005070	1
10	Clip	QS51013000	3
11	Tube, Breather, Ventilated	QS381S35000	1
12	Clip	QS51014018	1	14*1.8
13	Hose, Drain	QS9440408012050	1
14	Plug, Trap	QS370201000	2
15	Clip	QS51012012	4	12*1.2
16	Hose, Drain	QS40408012160	1
17	Filling tube fixing plate	QS468S3500000	1
18	Screw	QS903105014800K	2

Q.TY⁽¹⁾ = Minimum quantity required
