Qooder TAC63410 > Valve cam

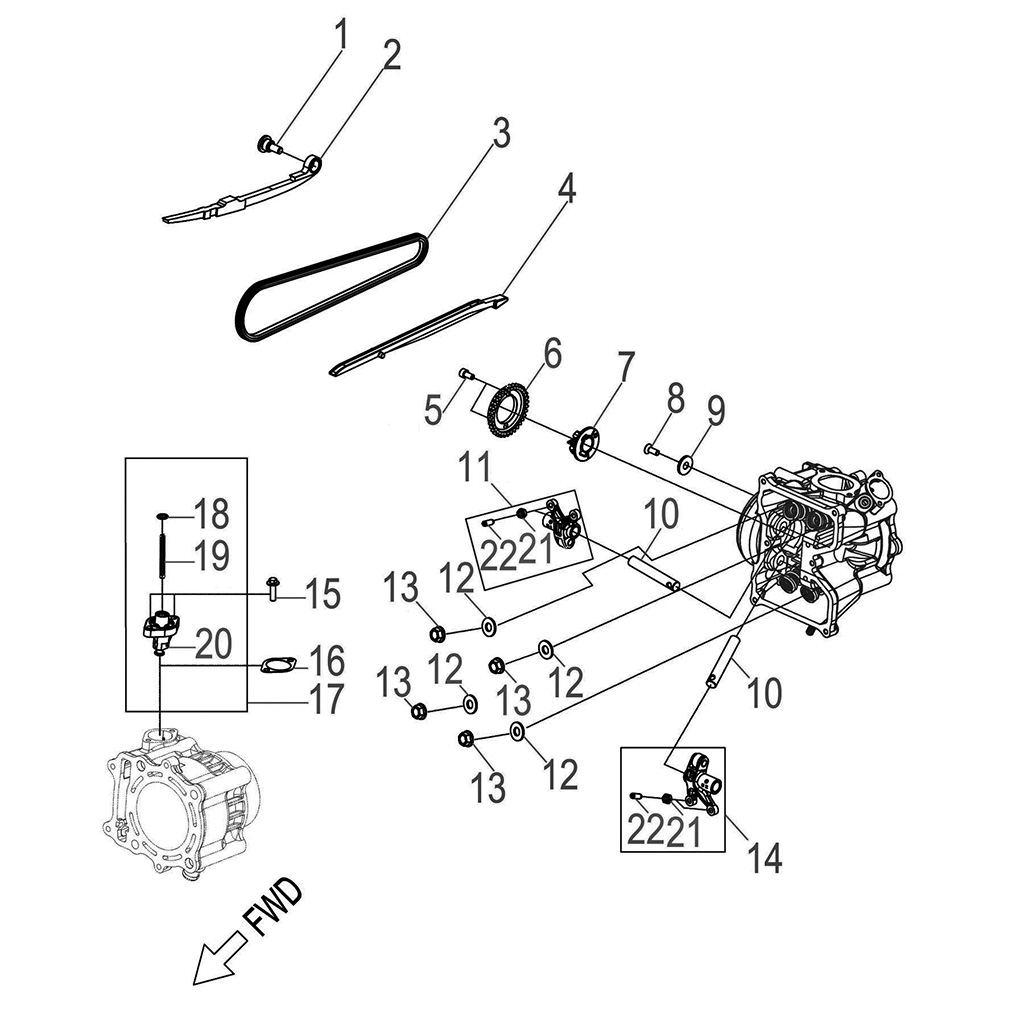

Valve cam

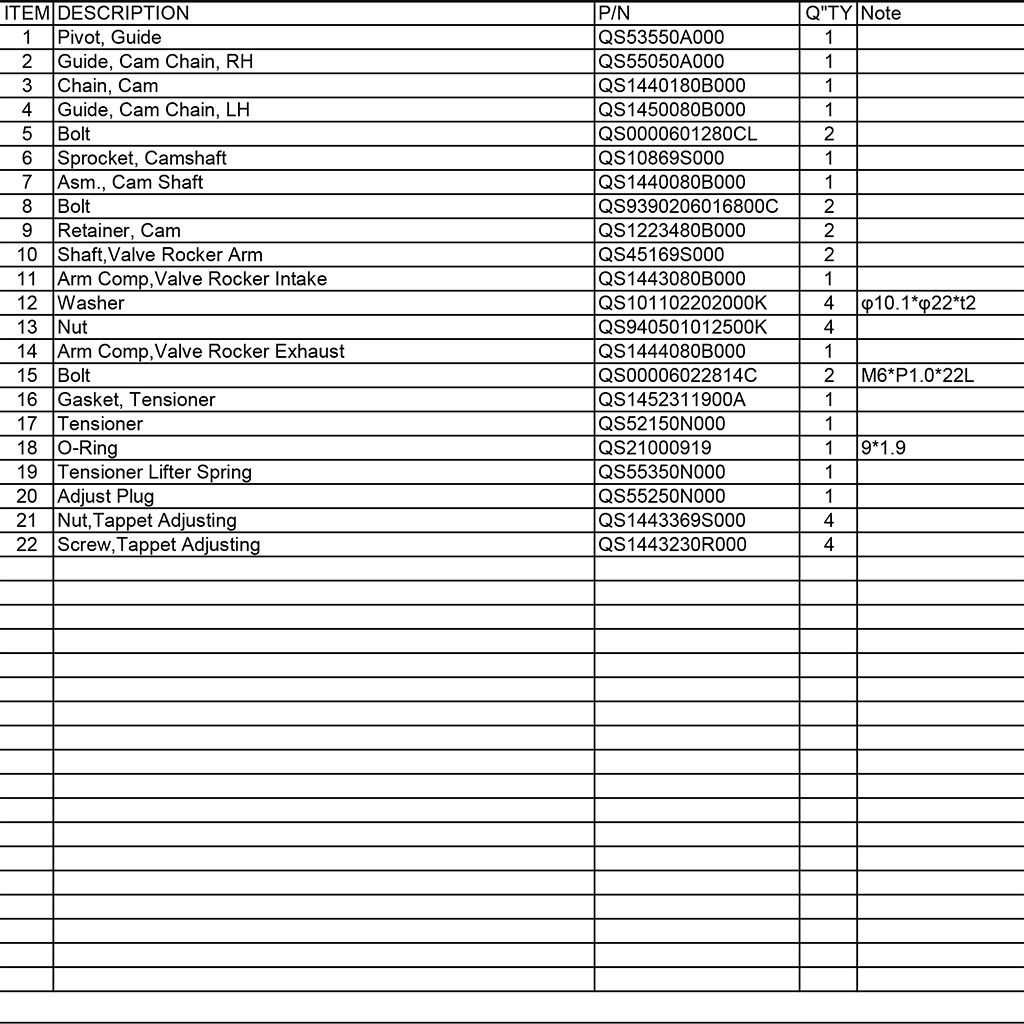

Item Description P/N Q.ty(1) Note
1 Pivot, Guide QS53550A000 1
2 Guide, Cam Chain, RH QS55050A000 1
3 Chain, Cam QS1440180B000 1
4 Guide, Cam Chain, LH QS1450080B000 1
5 Bolt QS0000601280CL 2
6 Sprocket, Camshaft QS10869S000 1
7 Asm., Cam Shaft QS1440080B000 1
8 Bolt QS9390206016800C 2
9 Retainer, Cam QS1223480B000 2
10 Shaft,Valve Rocker Arm QS45169S000 2
11 Arm Comp,Valve Rocker Intake QS1443080B000 1
12 Washer QS101102202000K 4 φ10.1*φ22*t2
13 Nut QS940501012500K 4
14 Arm Comp,Valve Rocker Exhaust QS1444080B000 1
15 Bolt QS00006022814C 2 M6*P1.0*22L
16 Gasket, Tensioner QS1452311900A 1
17 Tensioner QS52150N000 1
18 O-Ring QS21000919 1 9*1.9
19 Tensioner Lifter Spring QS55350N000 1
20 Adjust Plug QS55250N000 1
21 Nut,Tappet Adjusting QS1443369S000 4
22 Screw,Tappet Adjusting QS1443230R000 4

Q.TY(1) = Cantidad mínima requerida
